WAVLINK USB C to DisplayPort and HDMI

Description

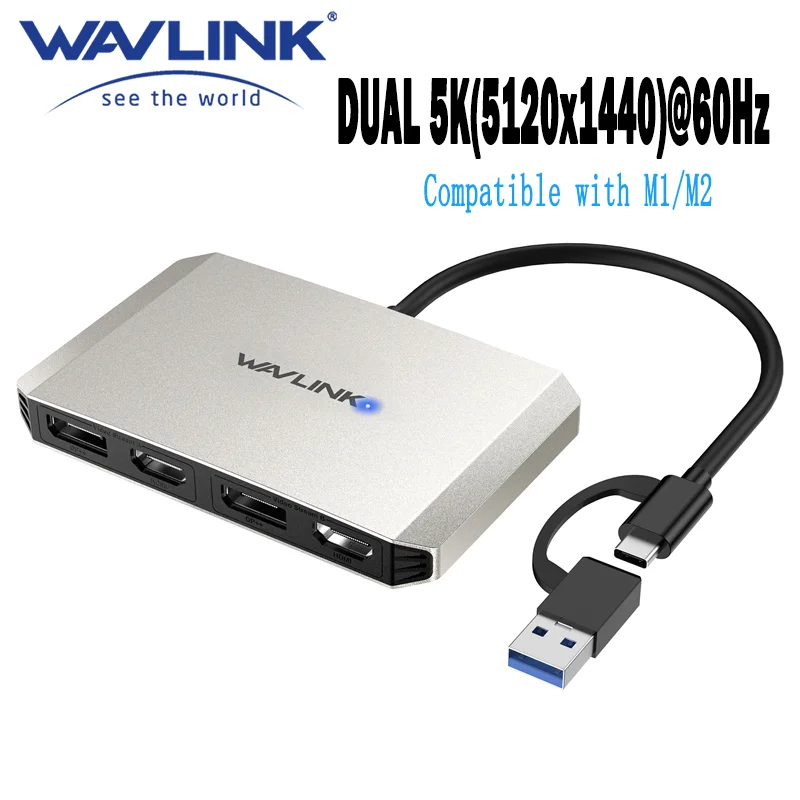

WAVLINK USB 3.0/USB C to DisplayPort and HDMI Adapter, Dual 5K@60Hz Monitor Hub for Dell HP Surface Lenovo, Compatible with Windows and Mac

Description:

WAVLINK USB 3.0 Dual 5K Display Adapter-Enjoy Crystal-clear Visual Feast!

The UG69DH2 display adapter incorporates the advanced DisplayLink technology, allowing you to output video through both DisplayPort and HDMI ports. This hub features two HDMI ports and two DP ports, enabling dual display functionality with a maximum resolution of 5K@60Hz. With this setup, you can enjoy high-quality visuals and enhanced productivity across multiple monitors. Comes with USB C port and USB C to A convertor, this adapter is compatible with Thunderbolt 4/3 ports, and USB 4 ports found on compatible computers. This broad compatibility ensures that you can utilize the adapter with a wide range of devices, making it versatile and adaptable to different setups.

Multi Display Modes

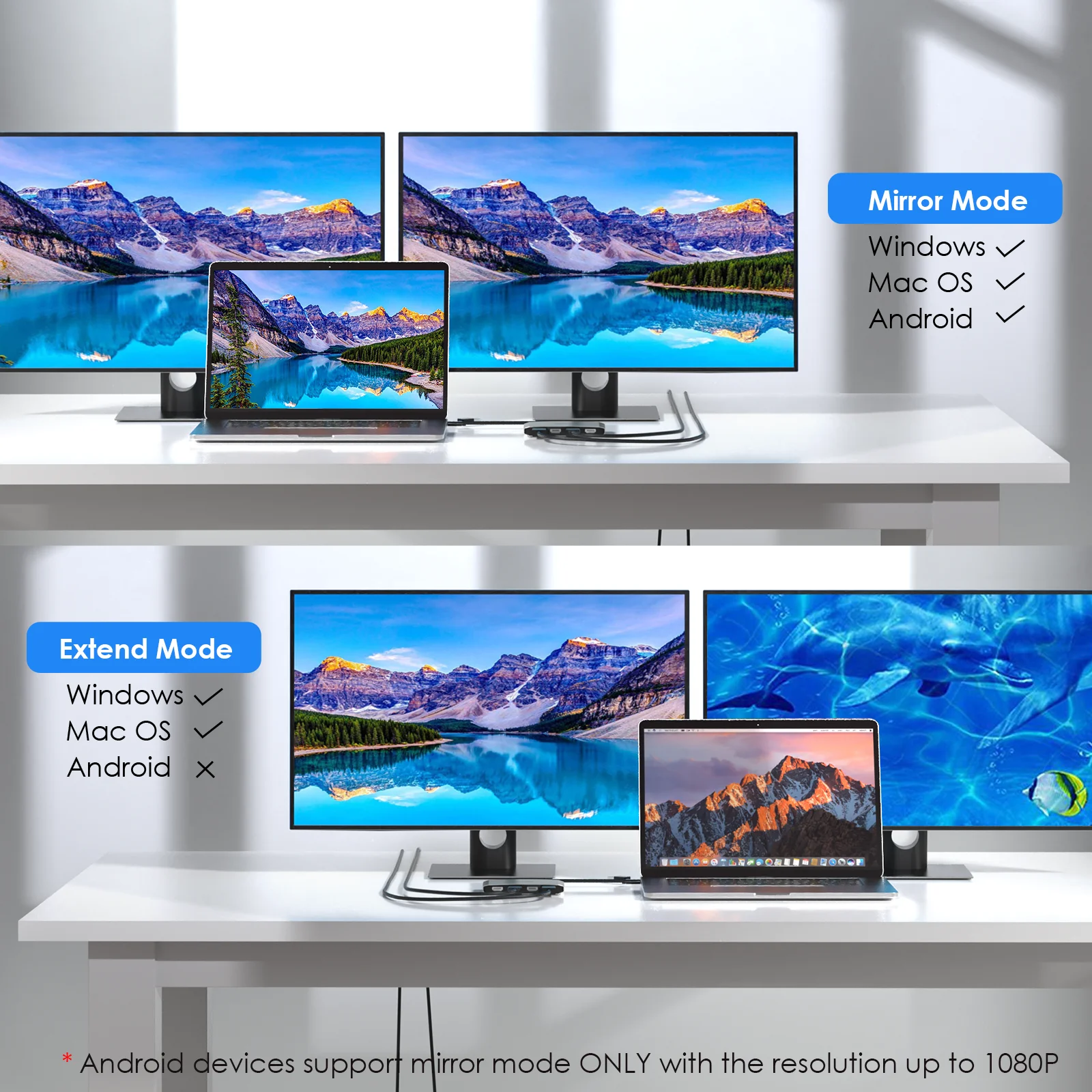

Mirror/extend/rotation/clamshell mode for choosing, to easily meet your different needs. You can use it in many occasions such as office, meeting or home theater.

Expand Your Workspace

Multiple USB adapters can be added to your PC for connecting up to 6 additional displays on Windows and 4 on Mac OS.

Dual Displays

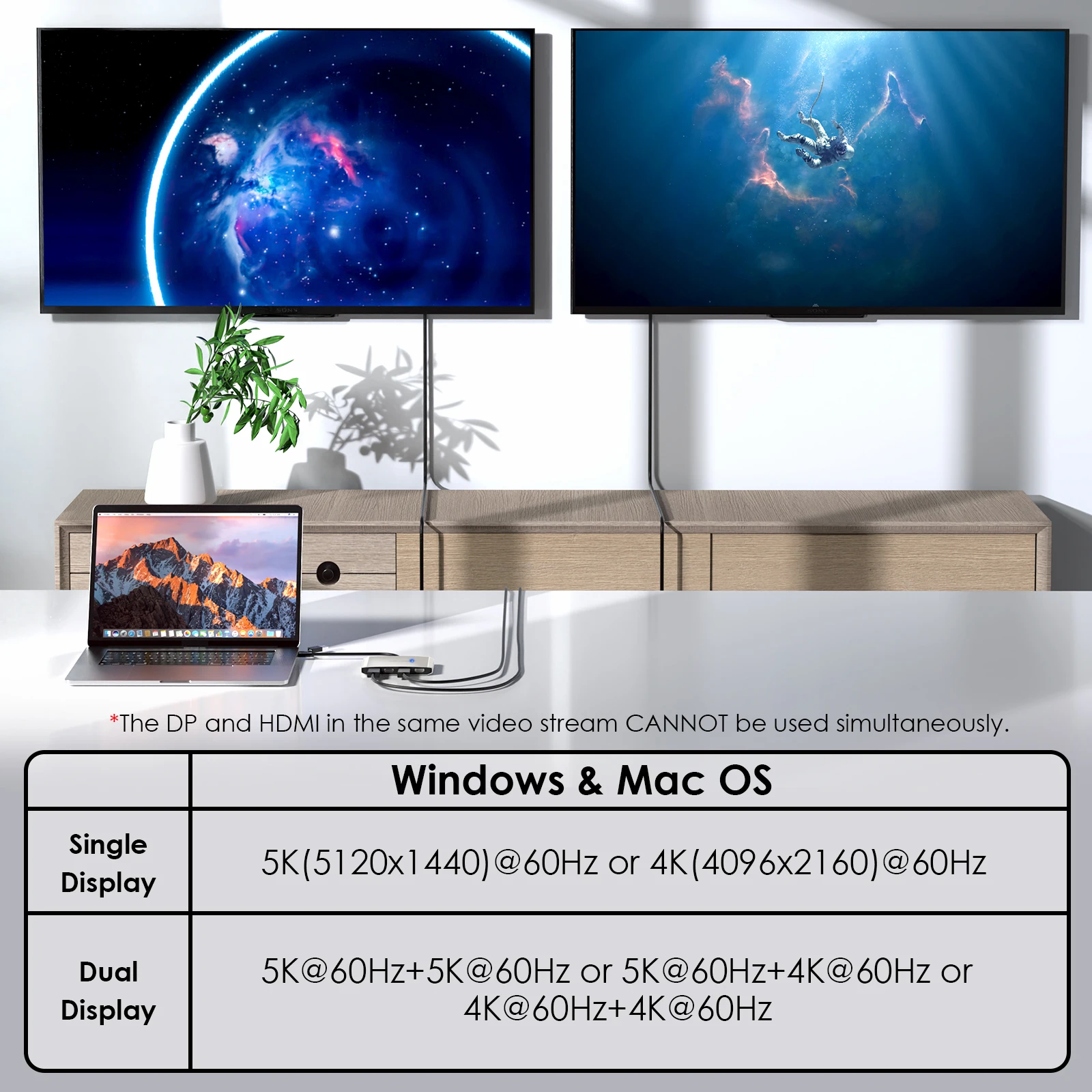

The USB3.0 video adapter adds support for two HDMI/DisplayPort monitors, capable of both extending or mirroring display with resolutions up to dual 5120×1440@60Hz.

Portable Design

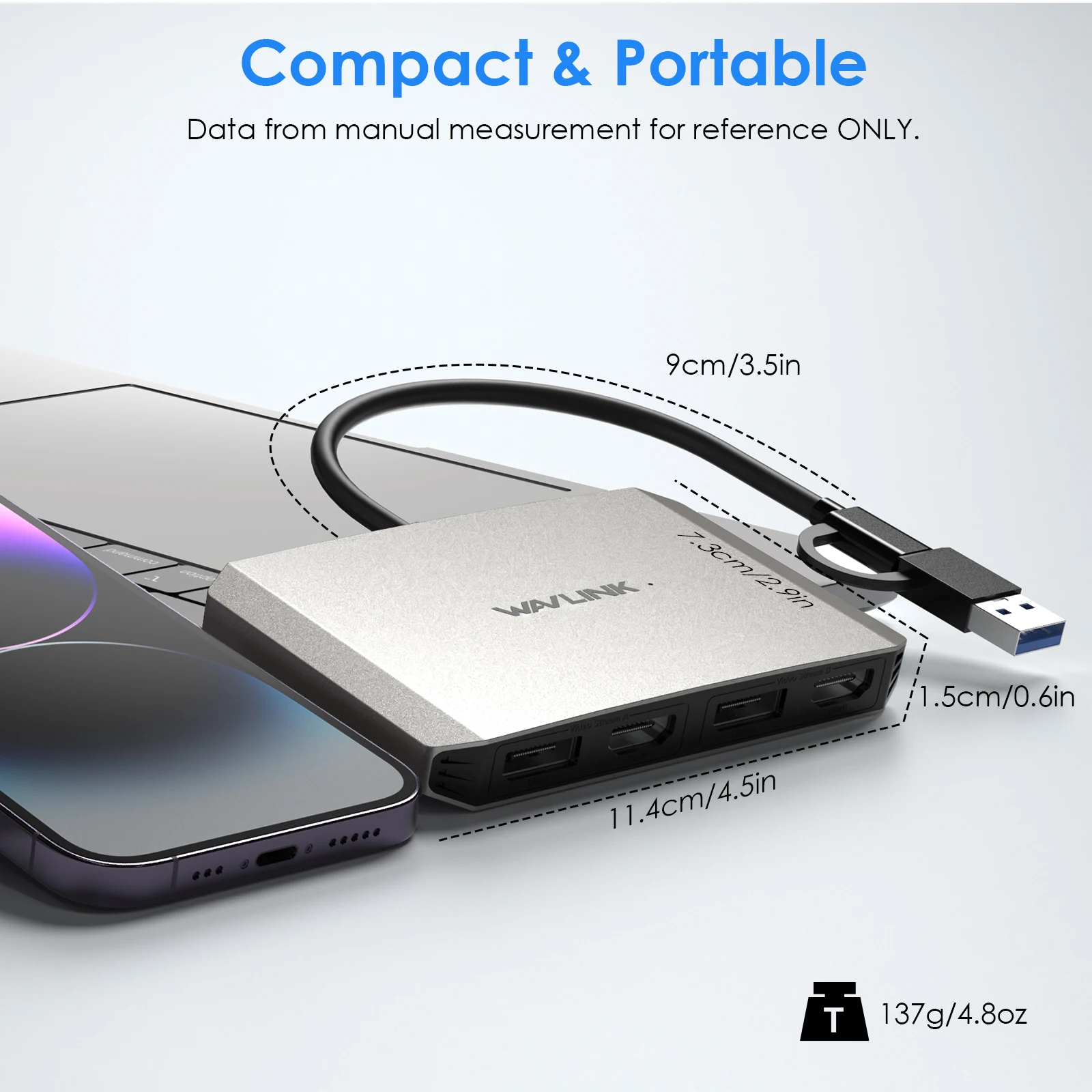

Lightweight of 137g/4.8oz, compact and portable size has it get handy for you in business trip, meeting, switching work at home or office etc.

Inputs for Choose

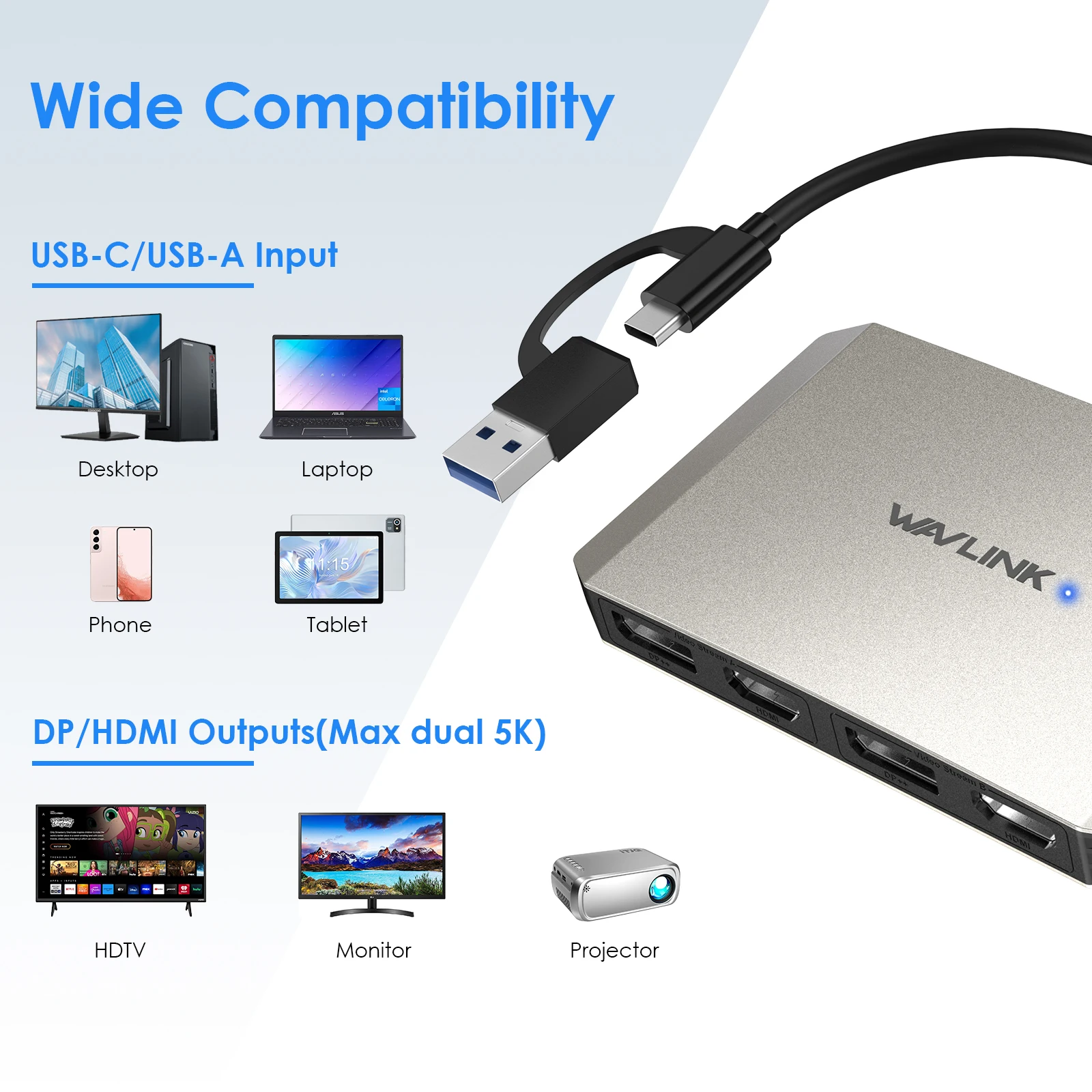

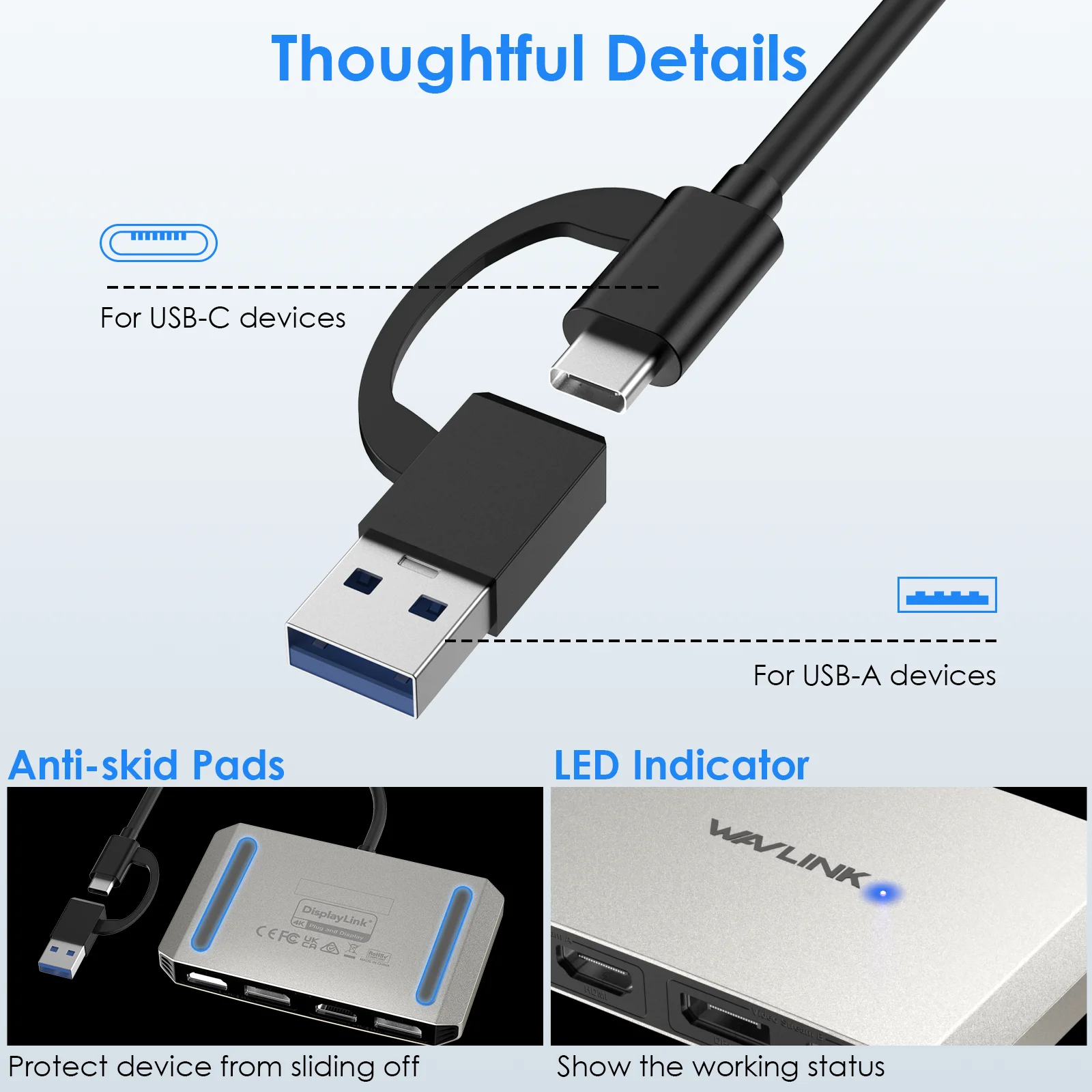

Comes with a hybrid 2-in-1 cable, it is easy to connect a USB-enabled device such as laptop, desktop, tablet, phone for a multi-monitor solution.

Super Speed

Take advantage of the super-speed USB 3.0 up to 5 Gbps to quickly transfer files, which ensures stable transmission and reduces latency.

5K without Limitation

USB 3.0 interface backwards compatible with USB 2.0, 5120×1440@60Hz/4096×2160@60Hz resolution remain when connecting to USB 2.0 interface.





Specification：

Model: WL-UG69DH2

Color: Silver

Ports: 2x5K@60Hz HDMI 1, 2x5K@60Hz DisplayPort

Unit Size: 11.4×7.3×1.5cm/4.5×2.9×0.6in(L x W x H)

Material Type: Aluminum Alloy+PVC Cable

Item Weight: 137g/4.8oz

Cable Length: 9cm/3.5in

System Requirement: Windows 7/8/8.1/10/11, MacOS 10.14-13.x or later, Chrome OS, Android, Ubuntu and HarmonyOS.



Features:

• Two video stream groups for dual display, each group only supports one to use simultaneously.

• Compatible with TBT4/3 and other USB-C Alt Mode ports on Mac or Windows computer.

• Supports mirror and extend modes.

• Boasts excellent heat dissipation capabilities and occupies minimal space, making it convenient to carry around.



Notes:

1. Do not support Linux, Unix, iOS and iPad OS.

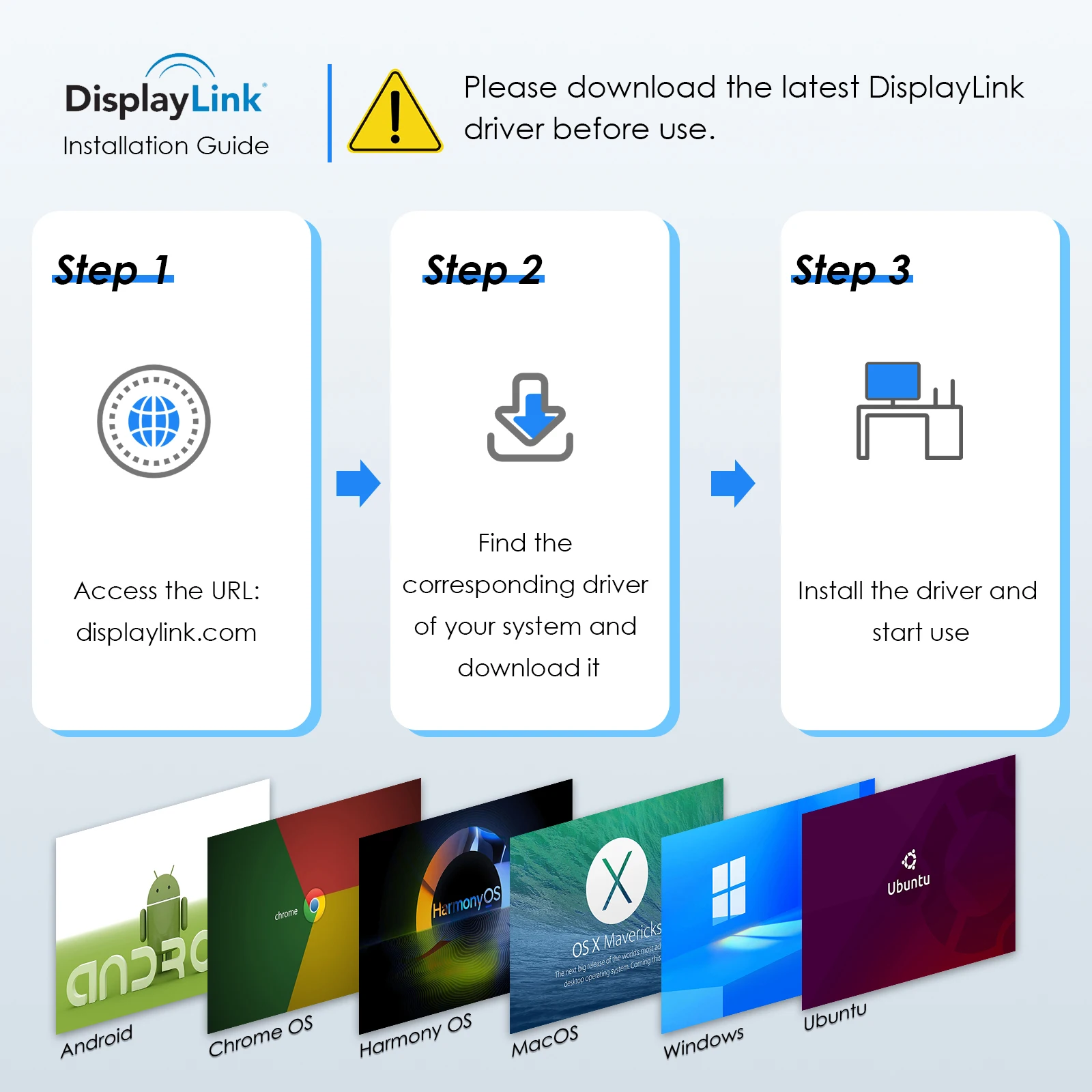

2. Driver installation is required, do not support plug and play. Please visit the website ‘displaylink.com’ to download the latest driver.

3. No additional power source is required for this adapter, work clutter free with fewer power cords around the desk.

4. Android devices support mirror mode ONLY with the resolution up to 1080P.

5. Windows/Mac 12.x based devices support rotation and clamshell modes.

6. The DP and HDMI in the same video stream CANNOT be used simultaneously.

7. Does not support playback of HDCP copyright protected content from Blu-ray/Netflix/Prime/iTunes/Hulu, and other platforms.

8. Suitable for office work, handling spreadsheets, documents or browsing the web. Not suitable for gaming or other high-intensity tasks.

9. For Mac users, it is necessary to grant permission to the DisplayLink Manager to record your screen.
