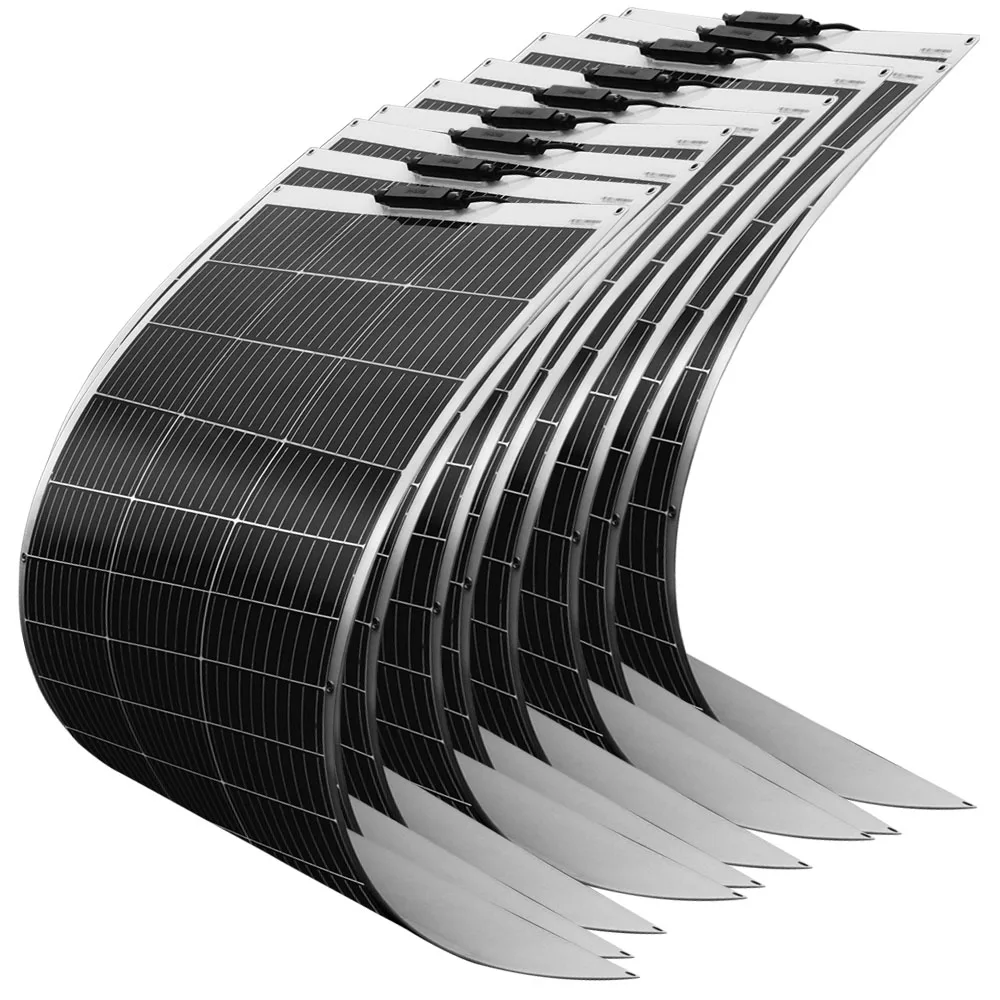

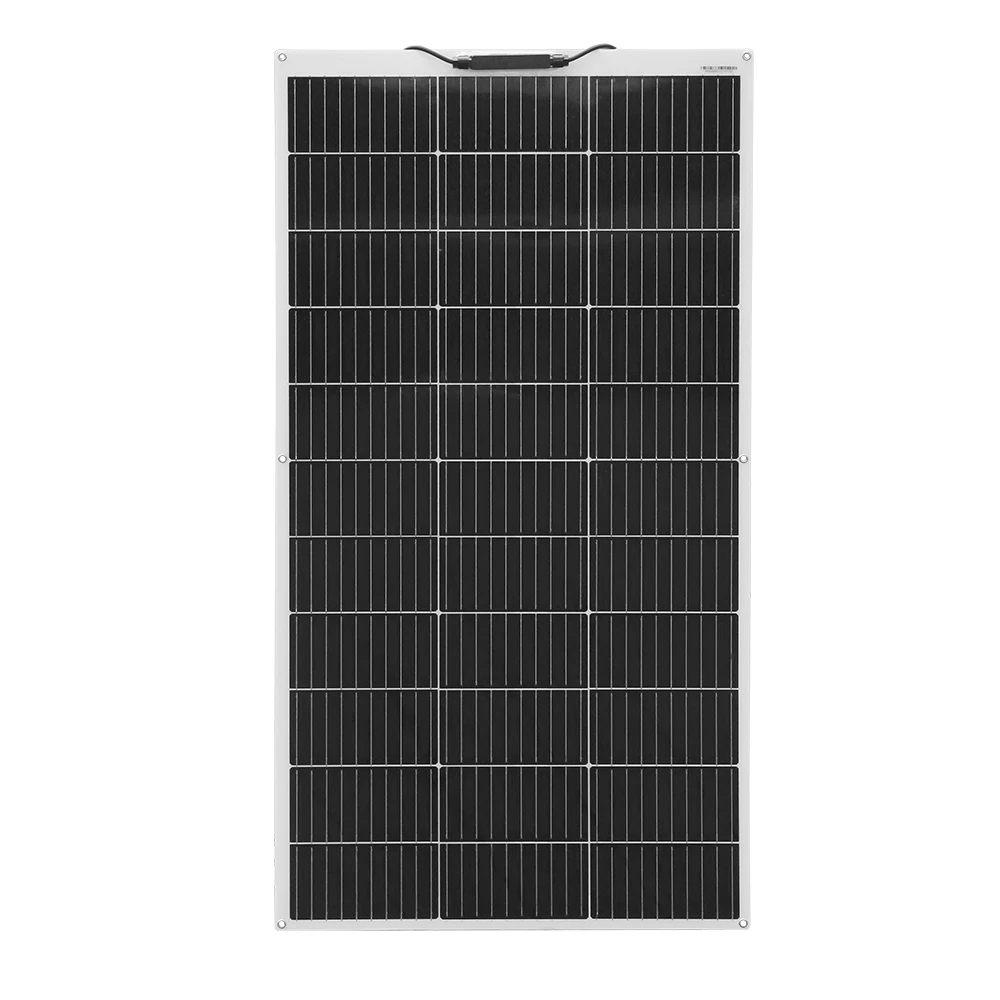

Monocrystalline Semi-flexible Solar Panel – Panel Solar 120 W choose from) For RV/Boat/Car/Home

Description

· [Excellent performance] High efficiency monocrystalline solar cells offer good performance even under poor light condition,Including bypass diode, circuit with input overcurrent protection, reverse protection design

· [Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.

· [Practicality] Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.

· [Lightweight] Ultralight and Ultra-thin ，Better applied to the carrier with weaker bearing, attached to the surface, no space，easy to install,

· [Nice Details] The water resistant semi-flexible solar panel is far more durable than traditional glass and aluminum models， The junction box is sealed and waterproof.

Notes for use

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.

1200W 600W 480W 120W 18V Monocrystalline Semi-flexible Solar Panel 1~10 pcs Panel Solar 120 W choose from) For RV/Boat/Car/Home

There are 2 colors of solar panels in black/white to choose from

Package list 1 : White 120w

1X120w White semi-flexible soalr panel

Package list 2 :2PCS 120w

2X120w White semi-flexible soalr panel

Package list 3 : 4PCS 120w

4X120w White semi-flexible soalr panel

Package list 4 : 10PCS 120w

10X120w White semi-flexible soalr panel

Package list 5 : Black 120w

1X120w Black semi-flexible soalr panel

Our ideal goal is to satisfy every customer. If you have any dissatisfaction with the product, please feel free to contact us. We will give you a satisfactory solution.

Product description:

Easy to use: This product is a semi-flexible board that can be bent up to 30 degrees. It is suitable for mounted on an irregular smooth surfaces such as RV roofs, boats, tents, Yacht, vaulted roofs, etc.

High efficiency, Light weight: only 3mm thick, weight 2.06kg, easy to hang, disassemble and carry.

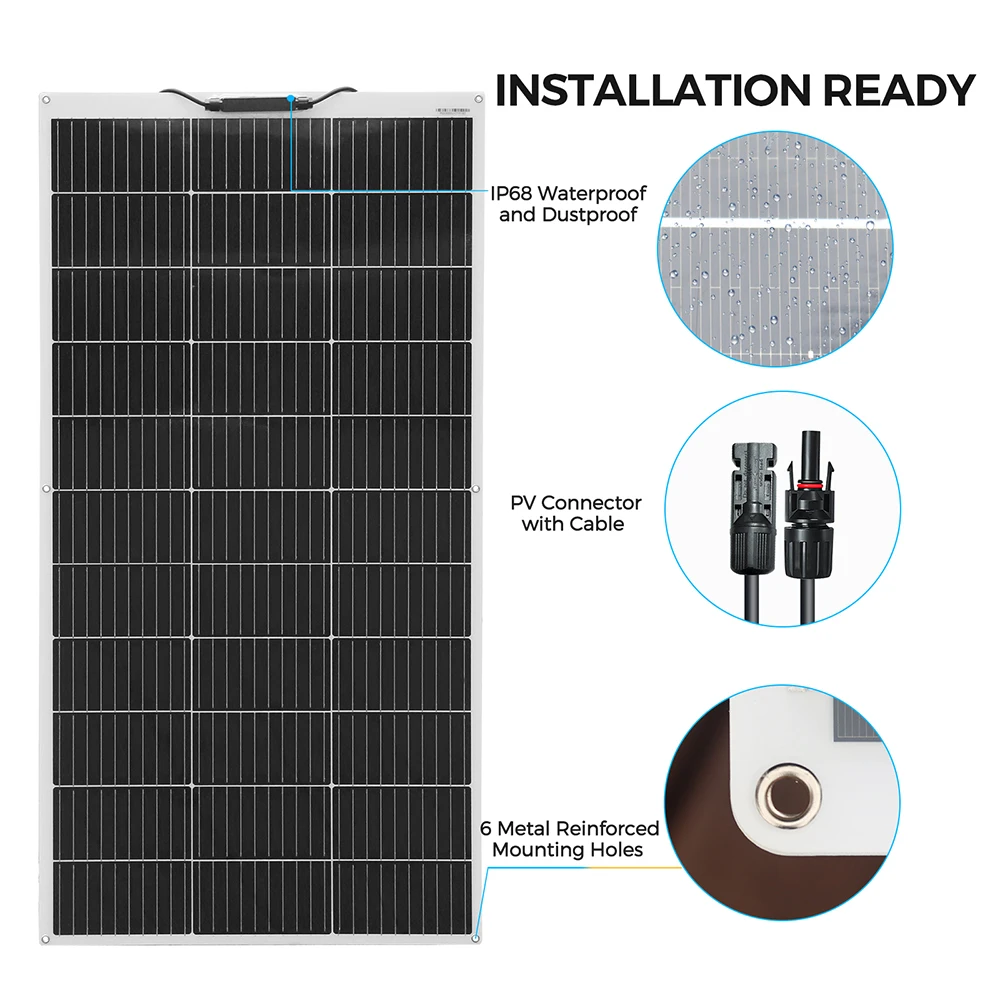

Easy to install: Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times. Please install the product on a smooth surface, do not install it on an uneven surface.

The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.

The solar panel operates at 18V. Please purchase a solar controller to charge the battery.

Solar Panel Specifications

Maximum power(Pmax) 120W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.78V

Short circuit current(Isc) 6.9 A

Maximum power voltage(Vmp) 18.15V

Maximum power current(Imp) 6.6A

Cell efficiency 24%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 2060g

Size 1065*550*3 mm

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
